Edibile Oil Packets
Edible Oils, Ghee, Vanaspati, Lubricants,shampoo,hair oil etc come under this category.

Pneumatic Model Machine for packing of Edible Oils

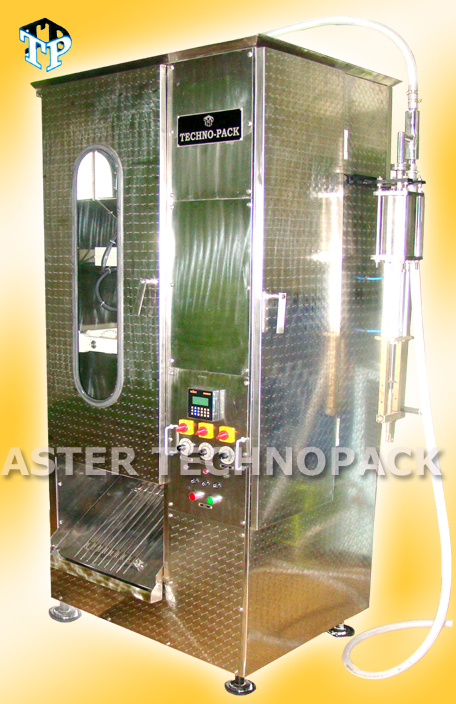

The Picture shown is a Pneumatic Single Head AFFS Machine. MODEL : TP-1000 S

TECHNICAL SPECIFICATIONS

1. Range : 50ml to 200 ml /
250 ml to 1000 ml
2. Capacity : 750 to 900 pouches/hour (Centre Seal ) 900 to 1200 Pouches/hour(Side seal)
3. Cooling Water Circulation : 100 ltrs/hr at 150C
(not required in case of laminated film)
4. Compressed Air Required : 6 kg/cm
5. Air Consumption : 25 mtr/hr
6. Electricity : 220 V ± 5% / 415 V
7. Power Consumption : 2 KW/hr
8. Film Material : Virgin Film / Laminated film
9. Type of Sealing : Impulse
10. Photocell & Date coding Device : Can be Provided as optional attachements
11. Accuracy : ± 0.2% to 0.3%



Mechanical model machine for packing of Viscous liquids

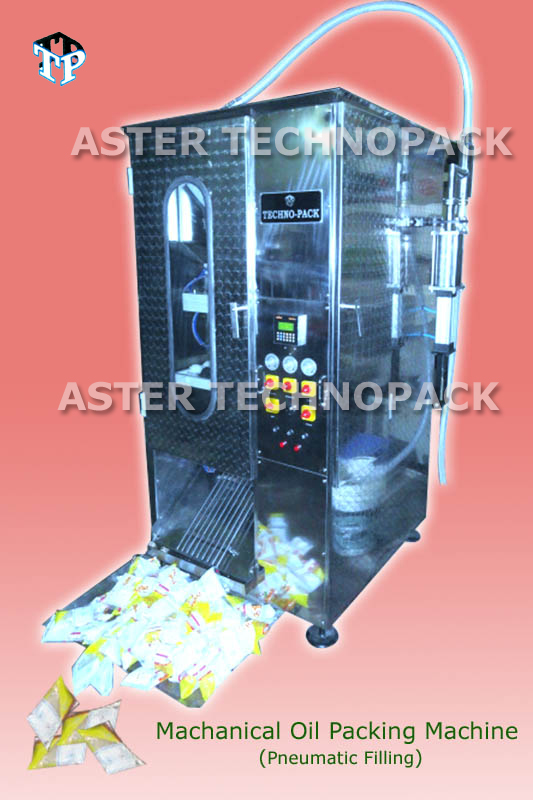

The Picture shown is a Mechanical Machine for Viscous Liquids. Model : TP-1000 M (P) ( Side Sealing with pneumatic filling )

TECHNICAL SPECIFICATIONS

1. Range : TP-1000 M (P) ( Side Sealing with pneumatic filling )
2. Capacity : : 800 to1000 pouches/hour (side sealing)
3. Cooling Water Circulation : 100 ltrs/hr at 150C (not required in case of laminated)
4. Electricity : 230 V AC
5. Power Consumption : 2.5 KW/hr
6. Film Material : Virgin Film / Laminate Film
7. Type of Sealing : Impulse
8. Accuracy : 0.3%
9. Photocell & Date coding Device   :  Can be Provided as optional attachments



Mechanical model machine for packing of Viscous liquids
The Picture shown is a Mechanical Machine for Viscous Liquids. Model : TP-200 M (P) ( Side Sealing with pneumatic filling )

TECHNICAL SPECIFICATIONS
1. Range : TP-200 M (P) ( Side Sealing with pneumatic filling )
2. Capacity : : 800 to1000 pouches/hour (3/4 side sealing)
3. Cooling Water Circulation : 100 ltrs/hr at 150C (not required in case of laminated)
4. Electricity : 230 V AC
5. Power Consumption : 2.5 KW/hr
6. Film Material : Virgin Film / Laminate Film
7. Type of Sealing : Impulse
8. Accuracy : 0.3%
9. Photocell & Date coding Device   :  Can be Provided as optional attachments

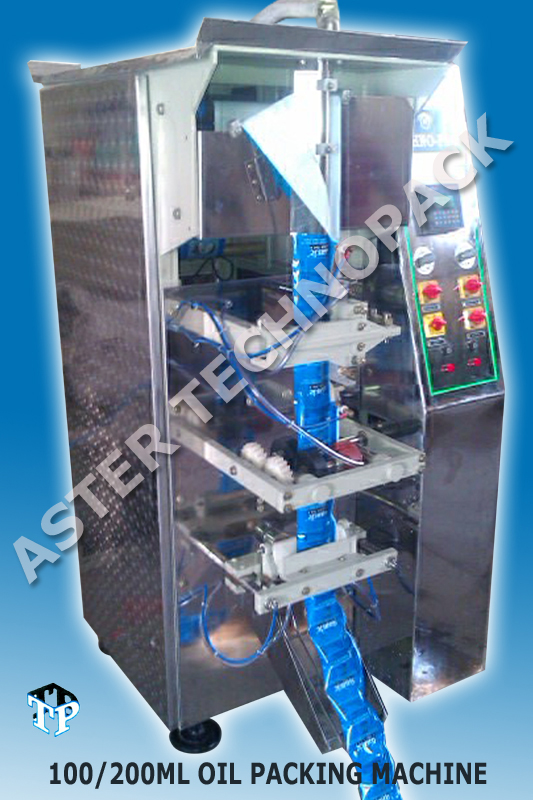

The Picture shown is a Mechanical AFFS machine MODEL : TP-100 L used for packing Viscous Liquids like Edible Oils, Ghee, Vanaspati, Lubricants etc. in Laminated Film

TECHNICAL SPECIFICATIONS

1. Range : 50ml to to 100 ml
2. Capacity : 20 to 30 bags / min.
(Depending upon the viscousity of the liquid)pouches/hour
3. Electricity : 230 VAC
4. Power Consumption : 1.5 KW/hr
5. Film Material : Laminated Film
6. Type of Sealing : Continuous (3 side/ 4 side)
11. Accuracy : ± 0.2% to 0.3%

Click on the Image for Bigger View

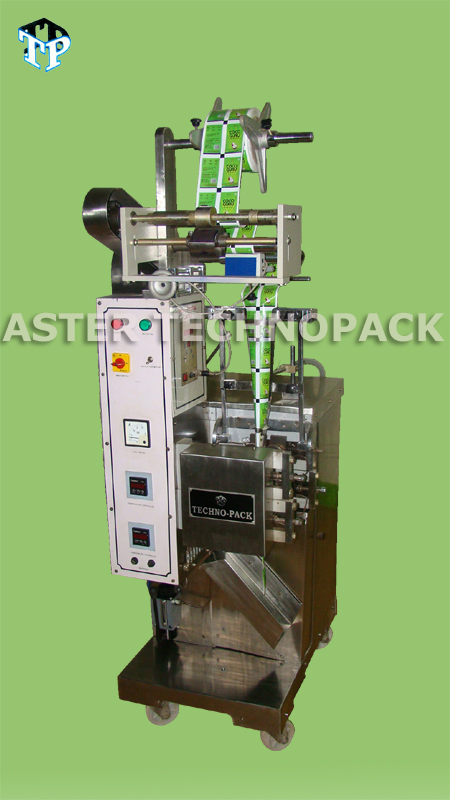

The Picture shown is a Mechanical AFFS machine MODEL : TP-50 L used for packing Viscous Liquids like Edible Oils, Ghee, Vanaspati, Lubricants,shampoo, etc. in Laminated Film

TECHNICAL SPECIFICATIONS



1. Range : 5ml to to 50 ml
2. Capacity : 30 to40 pouches / min.
(Depending upon the viscousity of the liquid)pouches/hour
3. Electricity : 230 VAC
4. Power Consumption : 1.5 KW/hr
5. Film Material : Laminated Film
6. Type of Sealing : Continuous (3 side/ 4 side)
11. Accuracy : ± 0.2% to 0.3%

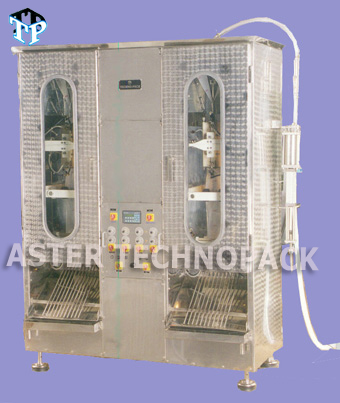

The Picture shown is a pneumatic Double Head AFFS Machine for Viscous Liquids like Edible Oils, Ghee, Vanaspati, Lubricants etc. Model : TP-2000 D (Double Head)

TECHNICAL SPECIFICATIONS

1. Range : 50ml to 200 ml /
250 ml to 1000 ml
2. Capacity : 1500 - 1800 pouches/hour
3. Cooling Water Circulation : 100 ltrs/hr at 150C
4. Electricity : 230 V AC
5. Power Consumption : 4 KW/hr
6. Peak Power : 12 KW/hr
7. Film Material : Virgin Film / Laminate Film
8. Type of Sealing : Impulse /Continous
9. Accuracy : ± 0.3%



The Machine shown is twin Pouch Packing machine for filling &sealing Viscous Liquids Like Hair Oils, Ghee, Vanaspati,Lubricants etc. in small pouches.
Model : TP - 100M

Technical Specifications



Model TP - 100 M
Range 2 to 100 ml/gms or 100 to 200 ml/gms
Capacity 60 pouches/minute(depending on product viscocity)
Air Pressure 6 Kg/Cm2 (If Pouch Count & Cut Facility Required)
Electricity 230 V AC
Power Consumption (a) Motor : 1X 1/2 hp (b) Heater : 900 watt to 1500 watt
(depending on packing range)
Accuracy ± 0.2% to 0.3%










Model TP-500 M is AFFS machine for filling & Sealing Viscous Liquids Like Eidible Oils, Ghee, Vanaspati, Lubricants etc.
Model : TP - 500 P
Range : 50 to 250 or 250 to 1000 ml/gms
Capacity : 500 fills/hour
Air Pressure : 6 Kg/Cm2
Electricity : 230 V AC
Accuracy : ± 0.3%
  :

TP-500 M



Model TP-500 M is AFFS machine for filling Viscous Liquids Like Eidible Oils, Ghee, Vanaspati, Lubricants etc.
Model : TP - 500 M
Range : 50 to 250 or 250 to 1000 ml/gms
Capacity : 600-800 fills/hour
Electricity : 230 V AC
Accuracy : ± 0.3%
  :
