SEALING MACHINES

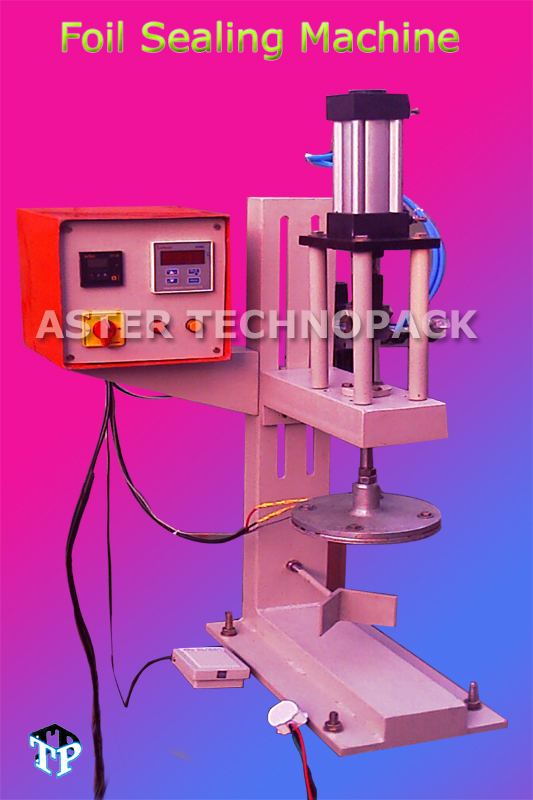

The Picture shown is a foil sealing machine up to 8 inches diameter. MODEL : TP-8D (for heat sealable foils)

TECHNICAL SPECIFICATIONS

1. Range : 40mm dia to 200mm dia
2. Capacity : 10 to 15 seals / min.
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 0.5 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous

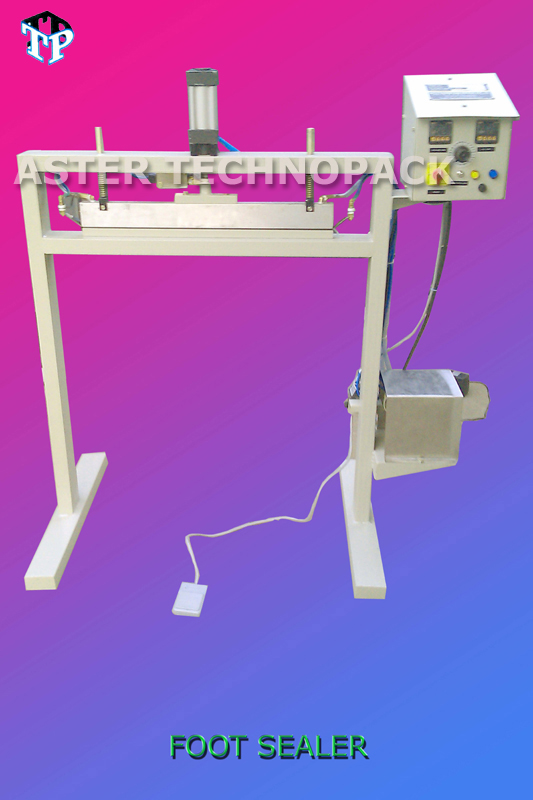

The Picture shown is a Foot sealing machine up to 500mm length. MODEL : TP-500L (for heat sealable foils)

TECHNICAL SPECIFICATIONS

1. Range : 2inch to 20inches length
2. Capacity : 10 to 15 seals / min.
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 1 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous

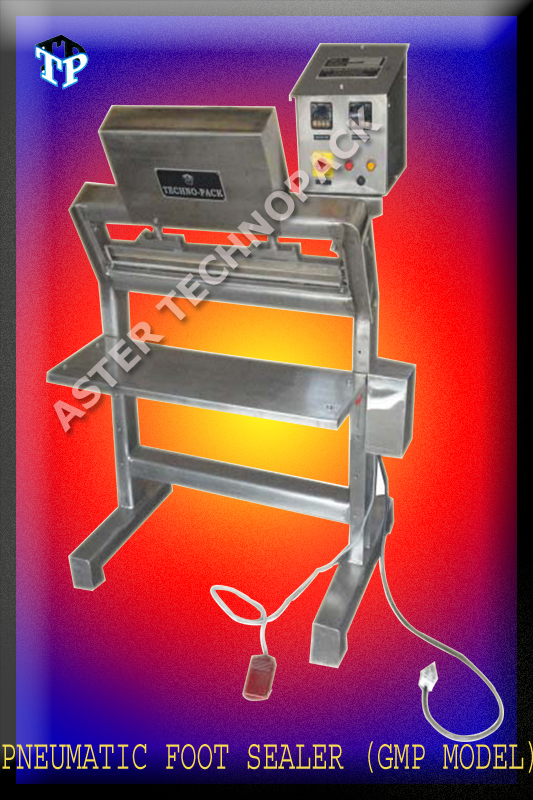

The Picture shown is a Foot sealing machine up to 700mm length. MODEL : TP-700GMP (for heat sealable foils)

TECHNICAL SPECIFICATIONS

1. Range : 2inch to 25inches length
2. Capacity : 10 to 15 seals / min.
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 1 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous

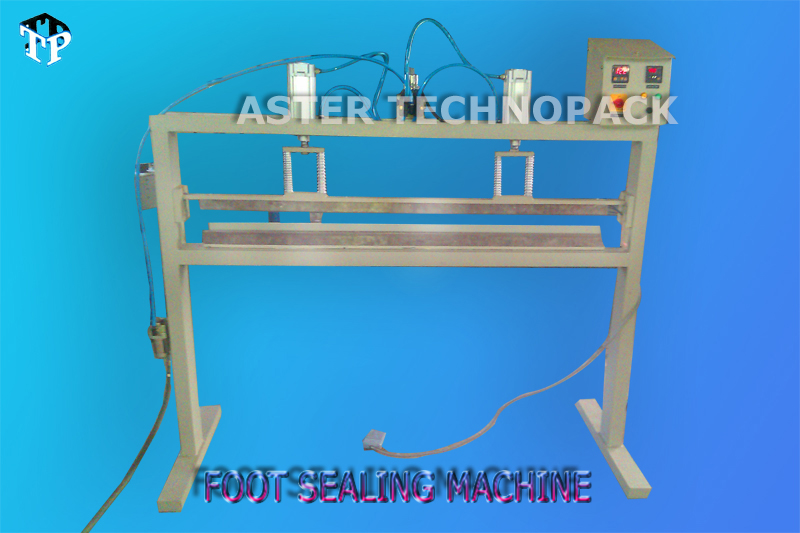

The Picture shown is a Foot sealing machine up to 60inches length. MODEL : TP-1500 (for heat sealable foils)

TECHNICAL SPECIFICATIONS

1. Range : 6inch to 60inches length
2. Capacity : 10 to 15 seals / min.
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 2 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous



The Picture shown is a Foot sealing machine up to 24inches length. MODEL : TP-600

TECHNICAL SPECIFICATIONS

1. Range : 6inch to 24inches length
2. Capacity : 10 to 15 seals / min.
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 1 KW
6. Film Material : Virgin/Laminated
7. Type of Sealing : impulse heating





SMALL BAND SEALER  (vertical)

Voltage (V/Hz)  AC 220/50 ,
Power (W) 50
Sealing Power (W) 300×2 ,
 Sealing Speed (m/min) 0-12
Sealing Width (mm)  12 ,
Temperature Range (℃)  0-300

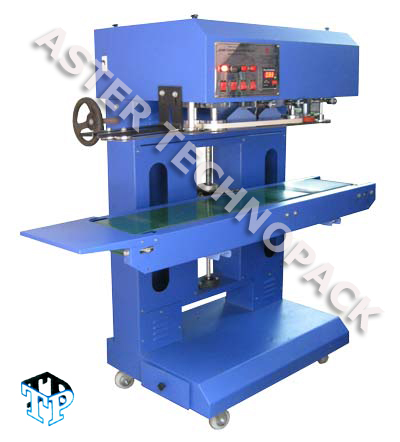

BIG BAND SEALER

TOP PART – SEALING PART :
L = 24”  W = 6”,  Height = 10.5”
Parts : Teflon Belts 2 Pcs. Cartege Heaters of 350 W. X2
Cooling Fan, Temperature Controller, Motor 0.25 HP.
AMP Meter, Fuses & Switches etc. (Single Phase supply)

BOTTOM PART – CONVEYOR PART :
L = 57”, Belt Lengh=33”  W = 6”  Height = 15”
Parts : 0.25 HP Motor, Special Type Belt 1 pc
LOADING CAPACITY : Weight 1 kg. to 10 kg.
Height : Adjustable as per Pouch Height.
SPEED : 5 mtrs  12 mtrs   Per minute
