POUCHING MACHINE(3 SIDE SEAL)

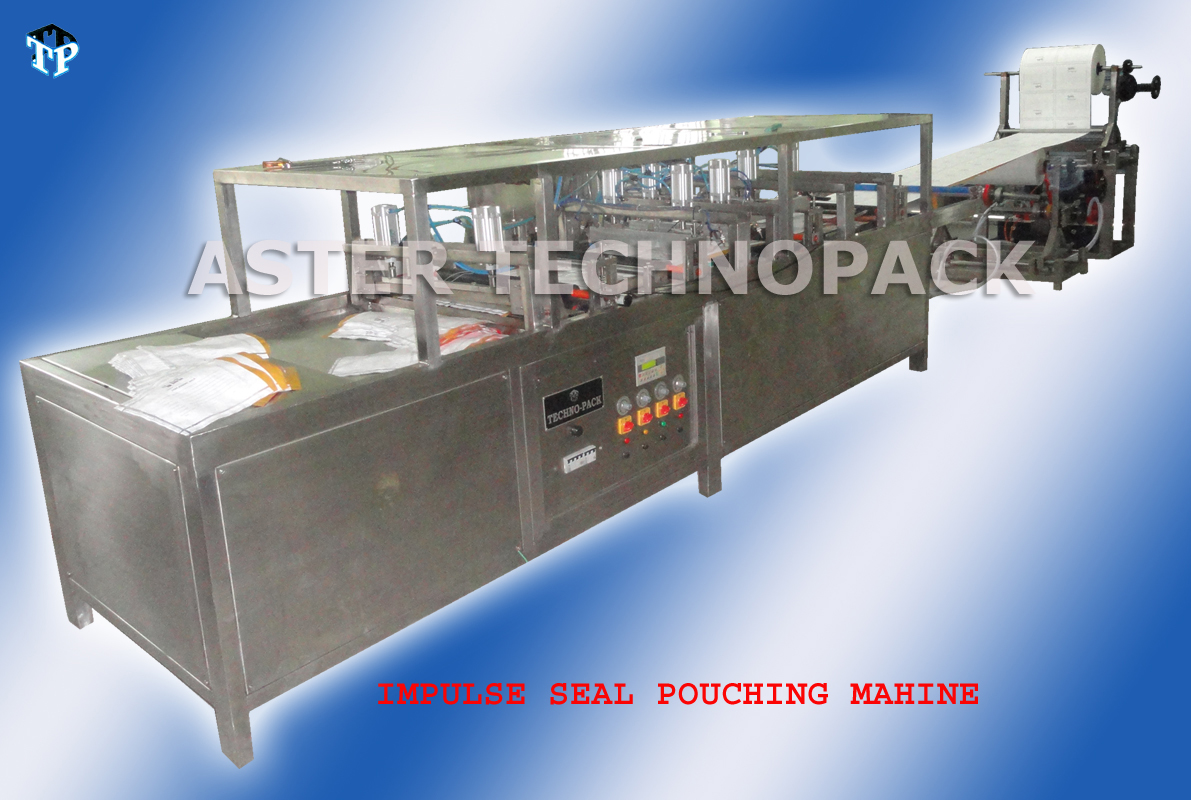

The Picture shown is a Impulse Seal Pouching machine

TECHNICAL SPECIFICATIONS
1. Width : 4 inches to 24 inches
2. Length : 6 inches to 24 inches
3. Capacity : 750 to 900 pouches/hour
3. Cooling Water Circulation : 100 ltrs/hr at 150C
5. Compressed Air Required : 6 kg/cm
6. Air Consumption : 25 mtr/hr
7. Electricity : 220 V ± 5% / 415 V
8. Power Consumption : 2 KW/hr
9. Film Material : Virgin Film
10. Type of Sealing : Impulse
11. Photocell & Date coding Device : Can be Provided as optional attachements

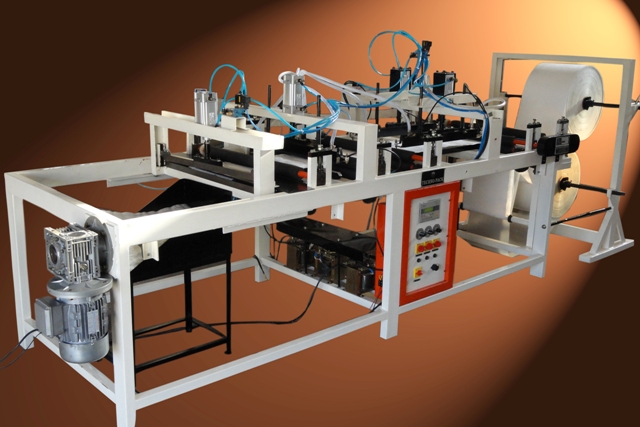

The Picture shown is a Continious Seal Pouching machine

TECHNICAL SPECIFICATIONS
1. Width : 6 inches to 32 inches
2. Length : 10 inches to 65 inches
3. Capacity : 500 to 1000 pouches/hour
4. Compressed Air Required : 6 kg/cm
5. Air Consumption : 25 mtr/hr
6. Electricity : 220 V ± 5% / 415 V
7. Power Consumption : 2 KW/hr
8. Film Material : Laminated Film
9. Type of Sealing : Continious
10. Photocell & Date coding Device : Can be Provided as optional attachements

The Picture shown is a Impulse Seal Pouching machine

TECHNICAL SPECIFICATIONS
1. Width: 4 inches to 24 inches
2.Length: 6 inches to 24 inches
3. Capacity : 750 to 900 pouches/hour
3. Cooling Water Circulation : 100 ltrs/hr at 150C
5. Compressed Air Required : 6 kg/cm
6. Air Consumption : 25 mtr/hr
7. Electricity : 220 V ± 5% / 415 V
8. Power Consumption : 2 KW/hr
9. Film Material : Virgin Film
10. Type of Sealing : Impulse
11. Photocell & Date coding Device : Can be Provided as optional attachements


ASTER TECHNO-PACK SYSTEMS Pvt. Ltd.
Manufacturers, Spares & Service of Automatic Form Fill & Seal Machines

Phone: 0091-40-23192686, Fax :0091-40-23091738, Cell : +91-98490 09562
Works : Plot F-14 (Part - A), Jeedimetla, Phase-I, Pipe Line Road, Hyderabad - 500 055.
Phone : 0091-40-23097525

E-mail: hyd2_chowdury@sancharnet.in,info@astertechnopacks.com
