RICE Pulses, Atta, etc. Come under this category . We have different models to pack powders & pulses
1. TP 1000 WF : WEIGH FILLER
2. TP 1000 CF : CUP FILLER
3. TP 1000 AF : AUGUR FILLER

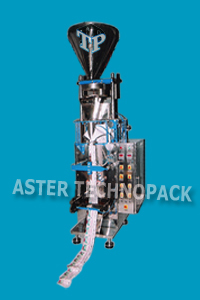

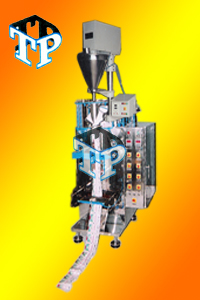

The Picture shown is of Augur Filler MODEL TP-1000 AF is a AFFS machine for packing Powders like Atta, Maida etc.

TECHNICAL SPECIFICATIONS

1. Range : 50 gms to 100 gms    /
500 gms to 1000 gms.
2. Capacity : 800 to1200 pouches/hr
3. Cooling water supply : 100 ltrs/hr at 150 C
(not required in case of Continuous sealing)
4. Electricity : 230 V AC
5. Power Consumption : 2.5 KW
6. Film Material : Virgin / Laminated
7. Type of Sealing : Impulse / Continuous
8. Accuracy : ± 0.2% to 0.3%

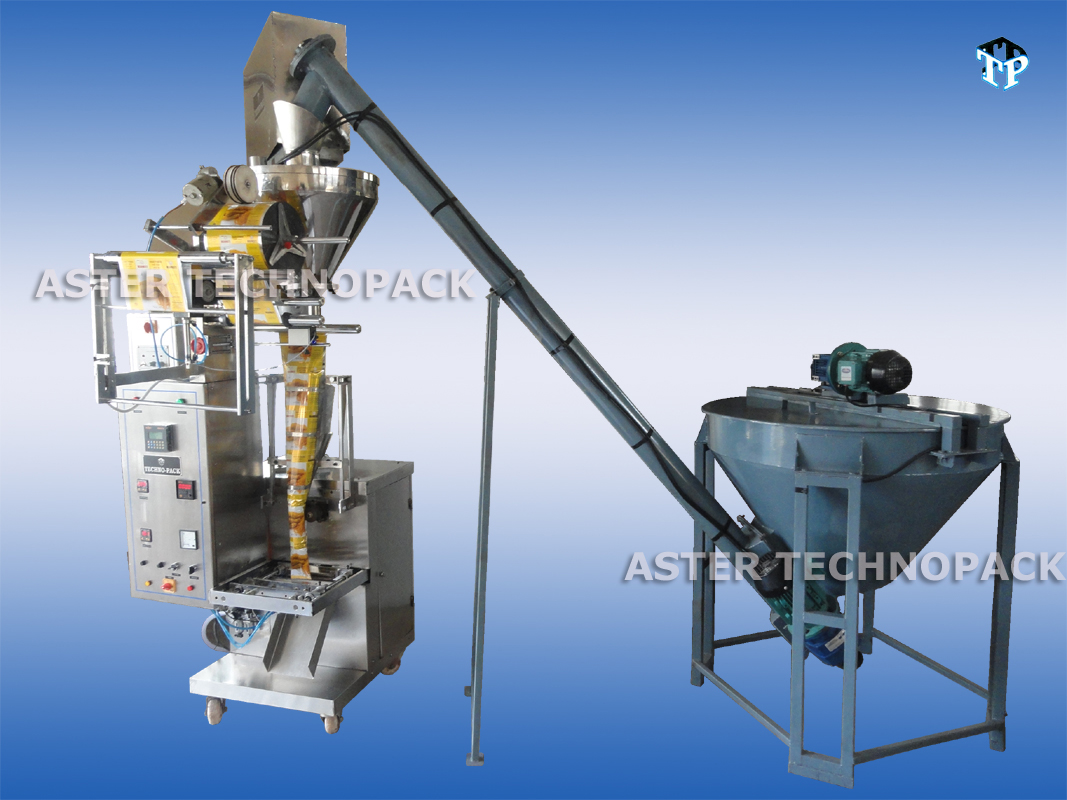

The Picture shown is a semi Pneumatic powder packing machine MODEL TP-1000 AF(SP)
1. Range :

50 gms to 100 gms    OR  200 gms to 500 gms.

2. Capacity : 800 to1200 pouches/hr
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 2.5 KW
6. Film Material : Laminated
7. Type of Sealing : IContinuous
8. Accuracy : ± 0.2% to 0.3%

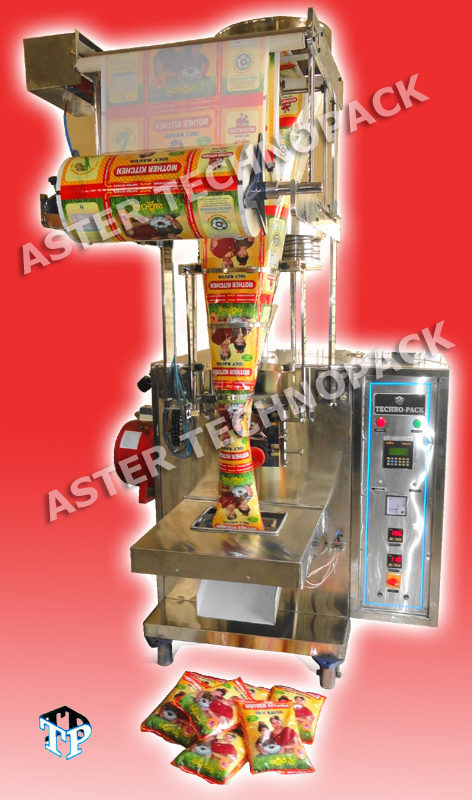

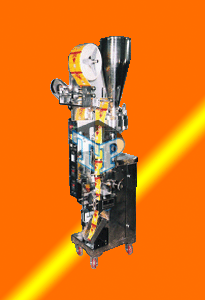

The Picture shown is of MODEL TP-1000 CF is a AFFS machine for packing Granules like Rice, Pulses etc.

TECHNICAL SPECIFICATIONS

1. Range : 50 gms to 100 gms    /
500 gms to 1000 gms.
2. Capacity : 800 to 1200 pouches/hr
3. Cooling water supply : 100 ltrs/hr at 150 C
(not required in case of Continuous sealing)
4. Electricity : 230 V AC
5. Power Consumption : 2.5 KW
6. Film Material : Virgin / Laminated
7. Type of Sealing : Impulse / Continuous
8. Accuracy : ± 0.2% to 0.3%

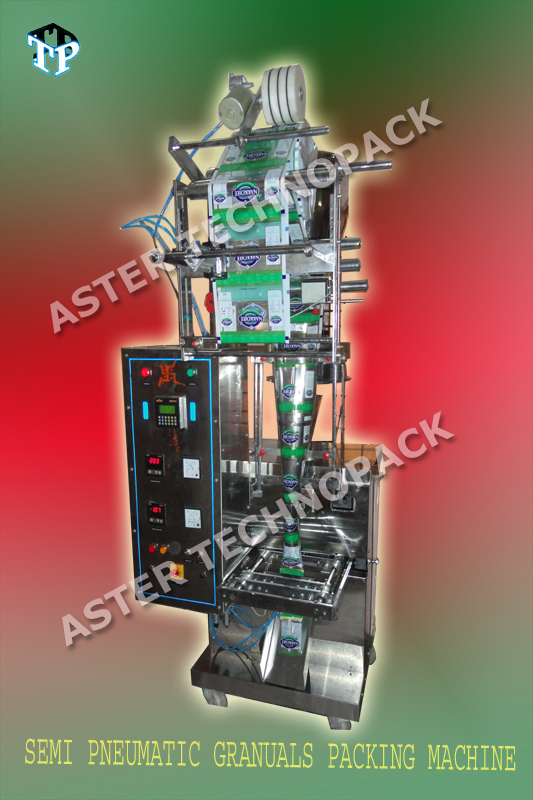

The Picture shown is of MODEL TP-1000 CF (SP) is a AFFS machine for packing Granules like Rice, Pulses etc.

TECHNICAL SPECIFICATIONS

1. Range : 200 gms to 1000 gms.
2. Capacity : 800 to 1200 pouches/hr
3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 2.0 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous
8. Accuracy : ± 0.2% to 0.3%



 The Picture shown is a Mechanical AFFS machine MODEL : TP-100 CF -P (semi pneumatic) used for packing Granuals ,powders, etc. in Laminated Film

TECHNICAL SPECIFICATIONS

1. Range : 50gms to to 100 gms
2. Capacity : 15 to 30 Pouches / min.

(Depending upon the Flowing rate of the product)

3. compressed air  Required : : 6kg pressure
4. Electricity : 230 V AC
5. Power Consumption : 1.5 KW
6. Film Material : Laminated
7. Type of Sealing : Continuous
8. Accuracy : ± 0.2% to 0.3%

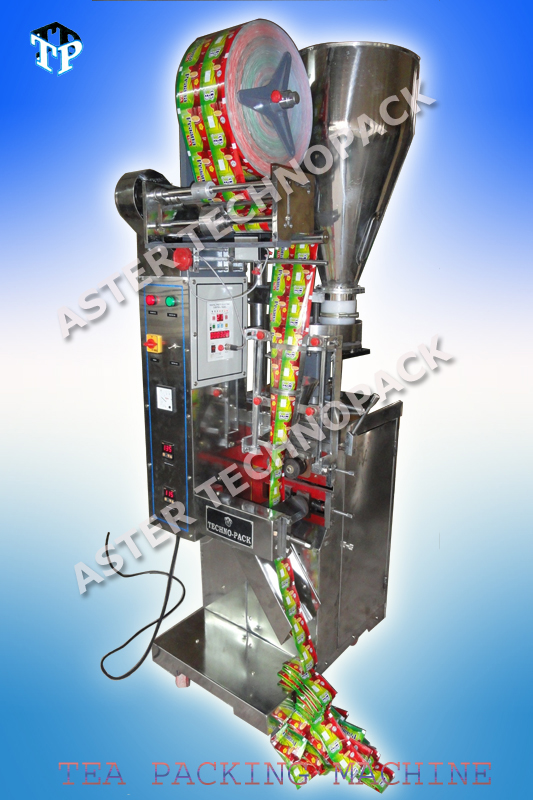

The Picture shown is of MODEL TP-50 CF is a AFFS machine for packing Tea, Pan-Masala, Khaini, Tablets, Saumff, Namkeen, Bhujiya, Soya Snacks, Spice and dry fruits etc.

TECHNICAL SPECIFICATIONS

1. Range : 2 gms to 10 gms, 10 gms to 20 gms
2. Capacity : 40 to 80 Bags/ Min. (Depending on the rate & volume of packing objects).
3. Electricity : 230 V AC
4. Power Consumption : (a). Motor : 1 x 1/2 HP
(b). Heater : 900 to 1500 watt (Depending on packing range)
5. Film Material : Heat sealable laminated film such as polyester/poly, Polyester/Met/Polyester Poly, Foil/Poly, Bopp/Foil Poly, Dip/Poly, Paper Foil/poly and other special heat sealble film Virgin / Laminated
6. Type of Sealing : 3 side / 4 side sealing and centre sealing.
8. Packing size : L 40 to 150 mm (Film Length) W 100 to 200 mm (Film Width) (Enlarged type can be make upon order)



The Picture shown is of MODEL TP-100 CF is a AFFS machine for packing Rice, Tea, Pan-Masala, Khaini, Tablets, Saumff, Namkeen, Bhujiya, Soya Snacks, Spice and dry fruits etc.

TECHNICAL SPECIFICATIONS

1. Range : 25 gms to 100 gms or 100 gms to 200 gms
2. Capacity : 20 to 30 Bags/ Min. (Depending on the rate & volume of packing objects).
3. Electricity : 230 V AC
4. Power Consumption : (a). Motor : 1 x 1/2 HP
(b). Heater : 900 to 1500 watt (Depending on packing range)
5. Film Material : Heat sealable laminated film such as polyester/poly, Polyester/Met/Polyester Poly, Foil/Poly, Bopp/Foil Poly, Dip/Poly, Paper Foil/poly and other special heat sealble film Virgin / Laminated
6. Type of Sealing : 3 side / 4 side sealing and centre sealing.
7. Packing size : L 100 to 250 mm (Film Length) W 200 to 420 mm (Film Width) (Enlarged type can be make upon order)
