ADHESIVE PACKING MACHINE

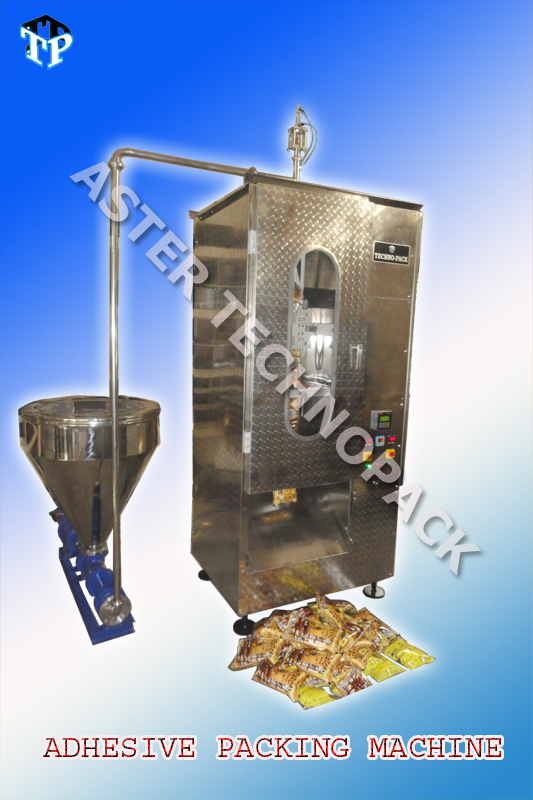

The Picture shown is a Pneumatic Single Head AFFS Machine. MODEL : TP-1000 P (SP)

TECHNICAL SPECIFICATIONS
1. Range : 50ml/gms to 200 ml /gms or
250 ml/gms to 1000 ml/gms
2. Capacity : 750 to 900 pouches/hour (Centre Seal ) 900 to 1200 Pouches/hour(3/4 Side seal)
3. Cooling Water Circulation : 100 ltrs/hr at 150C
(not required in case of laminated film)
4. Compressed Air Required : 6 kg/cm
5. Air Consumption : 25 mtr/hr
6. Electricity : 220 V ± 5% / 415 V
7. Power Consumption : 2 KW/hr
8. Film Material : Virgin Film / Laminated film
9. Type of Sealing : Impulse/continious
10. Photocell & Date coding Device : Can be Provided as optional attachements
11. Accuracy : ± 0.2% to 0.3%
